Filling machine

Versa Filler - Plug Trays

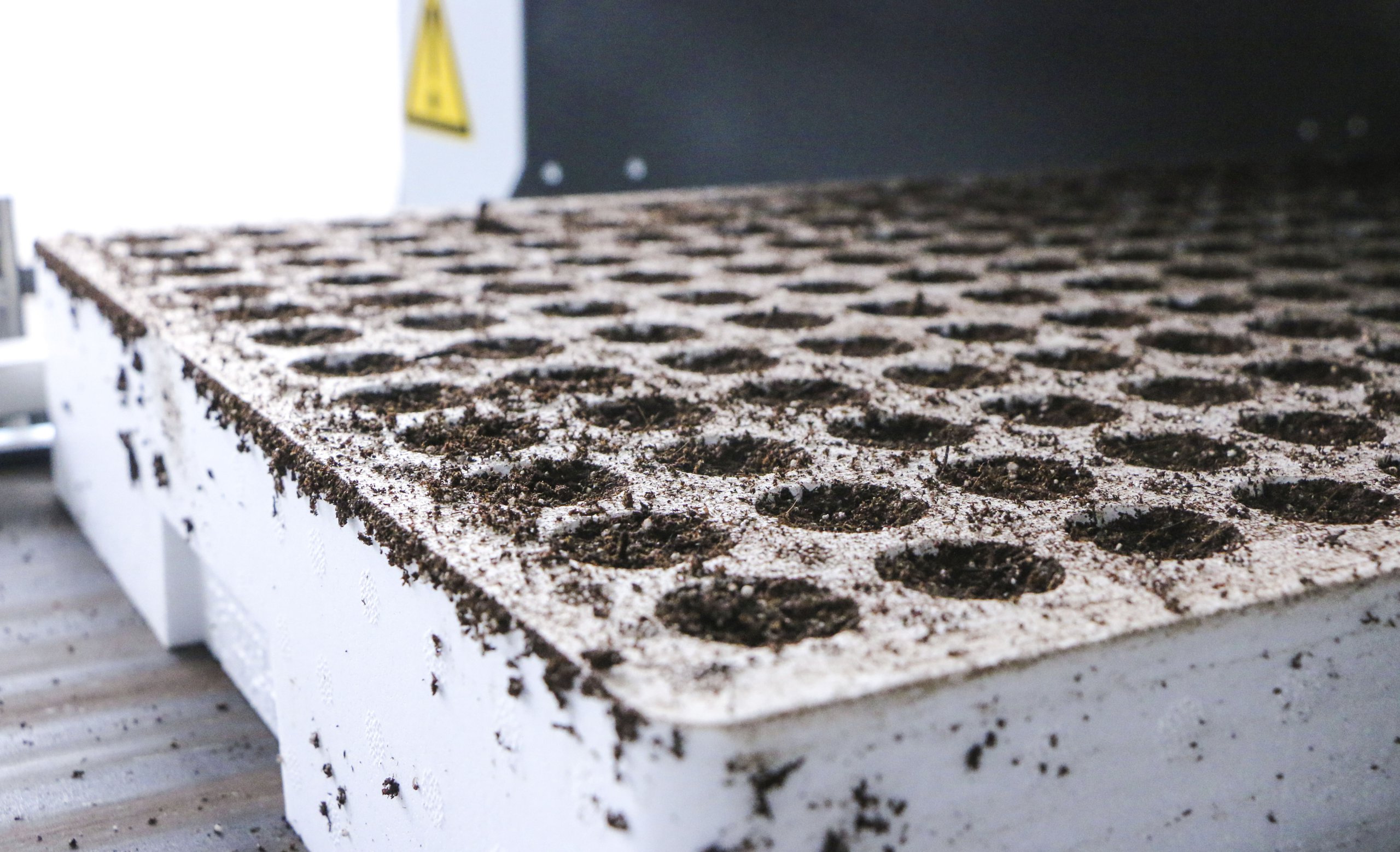

The Versa Filler is the most advanced and versatile filler. It is fully adjustable to your container, plug diameter, filling density, and required capacity. The Versa Filler is specialized in filling plug trays with high speed, perfect soil compaction, and a homogeneous filling result.

  • All components in height/speed adjustable
  • Innovative soil return system
  • Very high soil compaction possible
Robbert-Jan in 't Veld | Global Sales Manager

Let's start your new project together

Versa Filler – trays

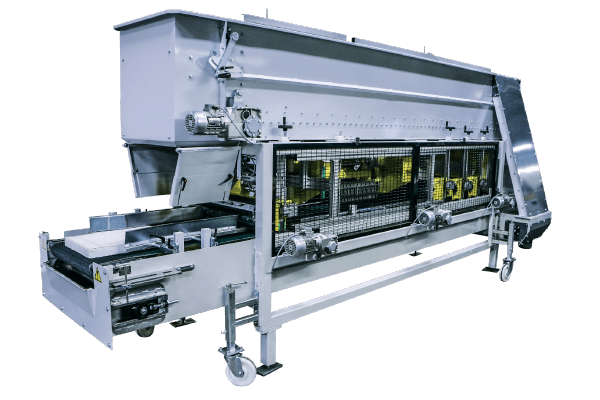

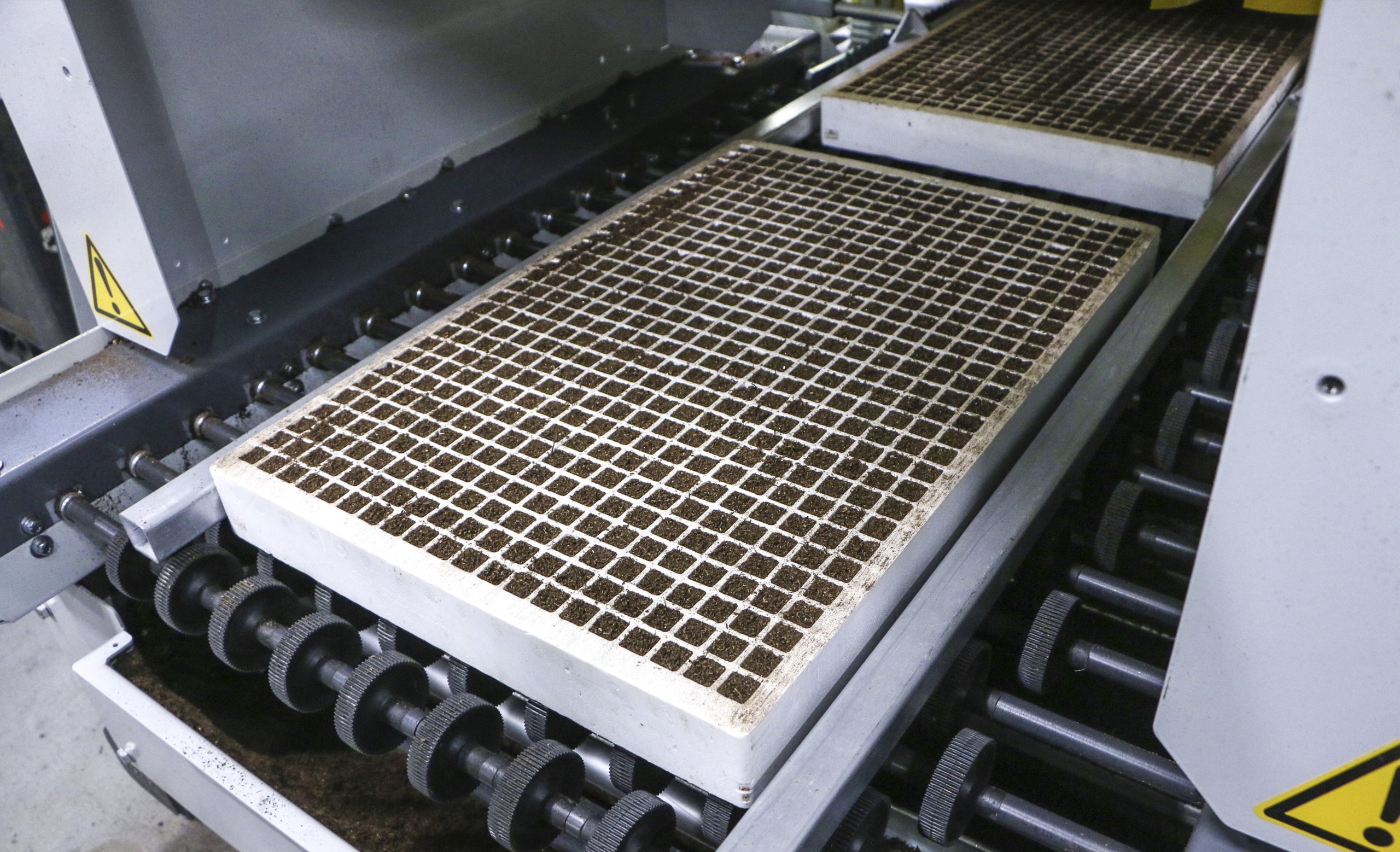

The Versa Filler is the most advanced and versatile filling machine on the market. With a clearance of 400 mm high and 600 mm wide and the capability to fill long-side leading, it is suitable for filling any plug tray. The Versa Filler can fill up to 1,500 trays per hour and can achieve a very high soil compaction.

A perfect filling result is guaranteed by utilizing five exchangeable substrate compressing processes:
1. Rubber compression roller for optimal soil compaction.
2. Second rubber compression roller for extremely high soil compaction.

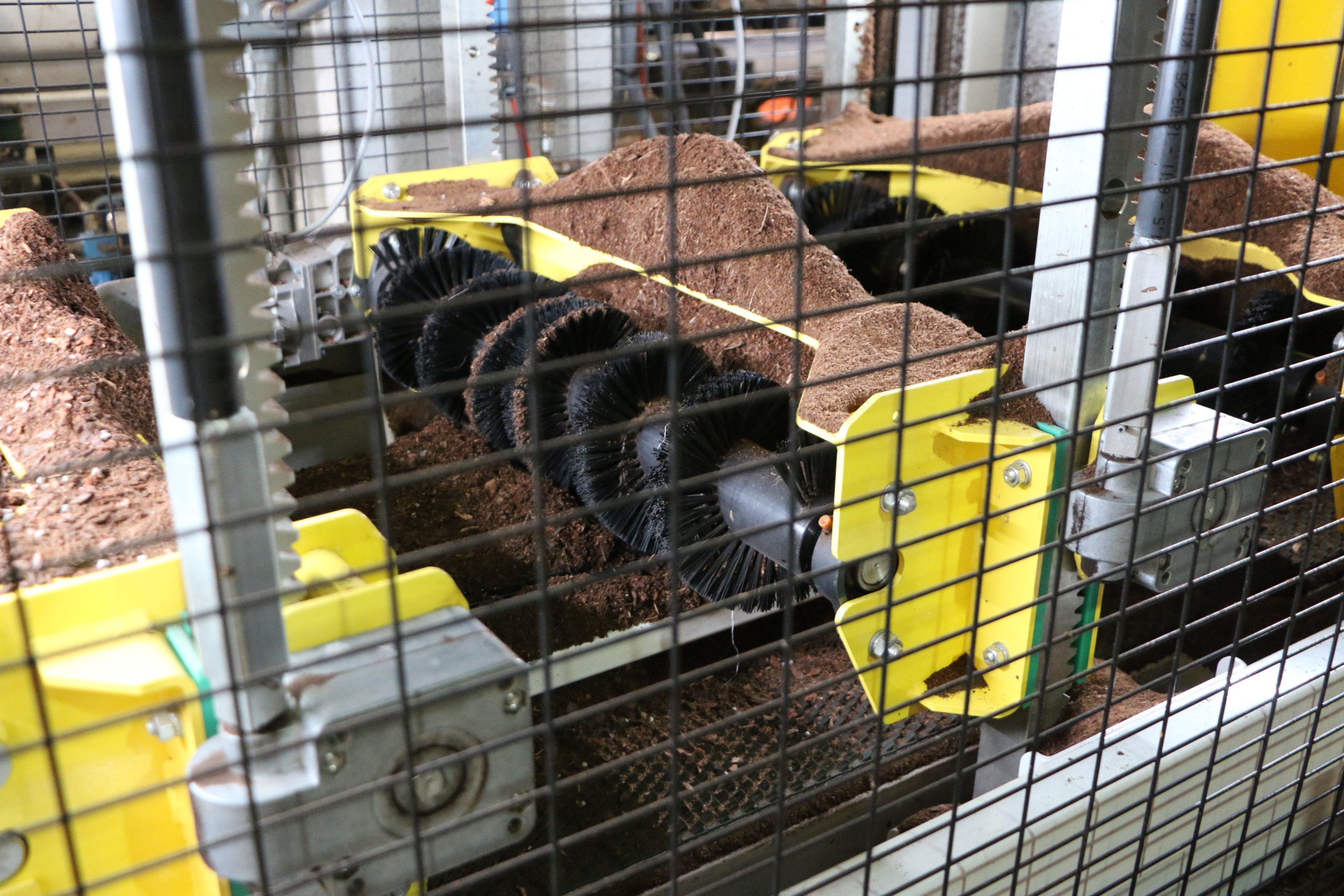

3. Spiral rotating brush pulls any additional excess soil for a clean finish.
4. Second spiral rotating brush for a clean finish and uniform result.

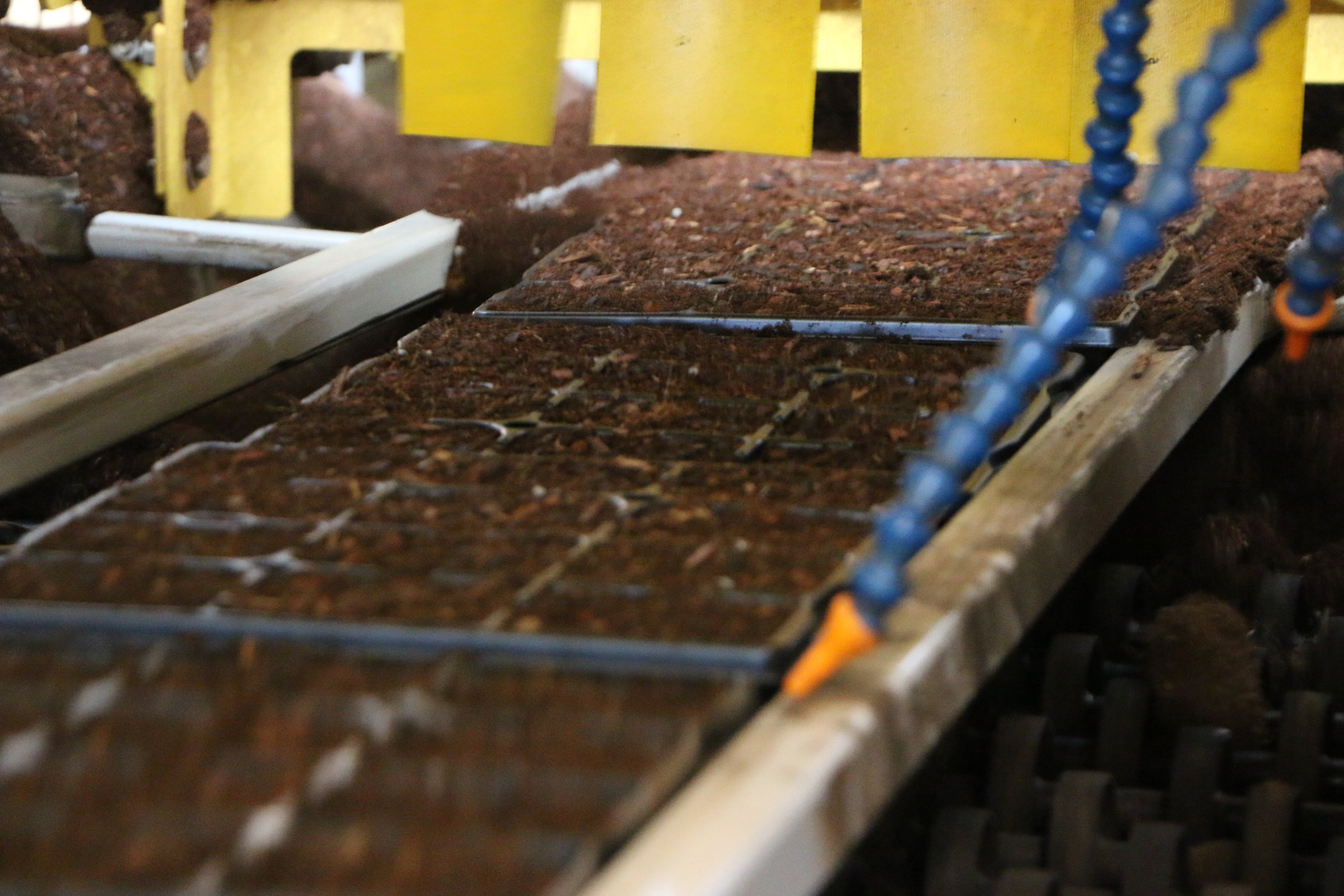

All internal components are height adjustable and have manually adjustable speed control to give you the fill you require. 10 Air nozzles are used for soil removal, making for a clean operation. This Versa Filler is service friendly as all internal components are easily interchangeable.

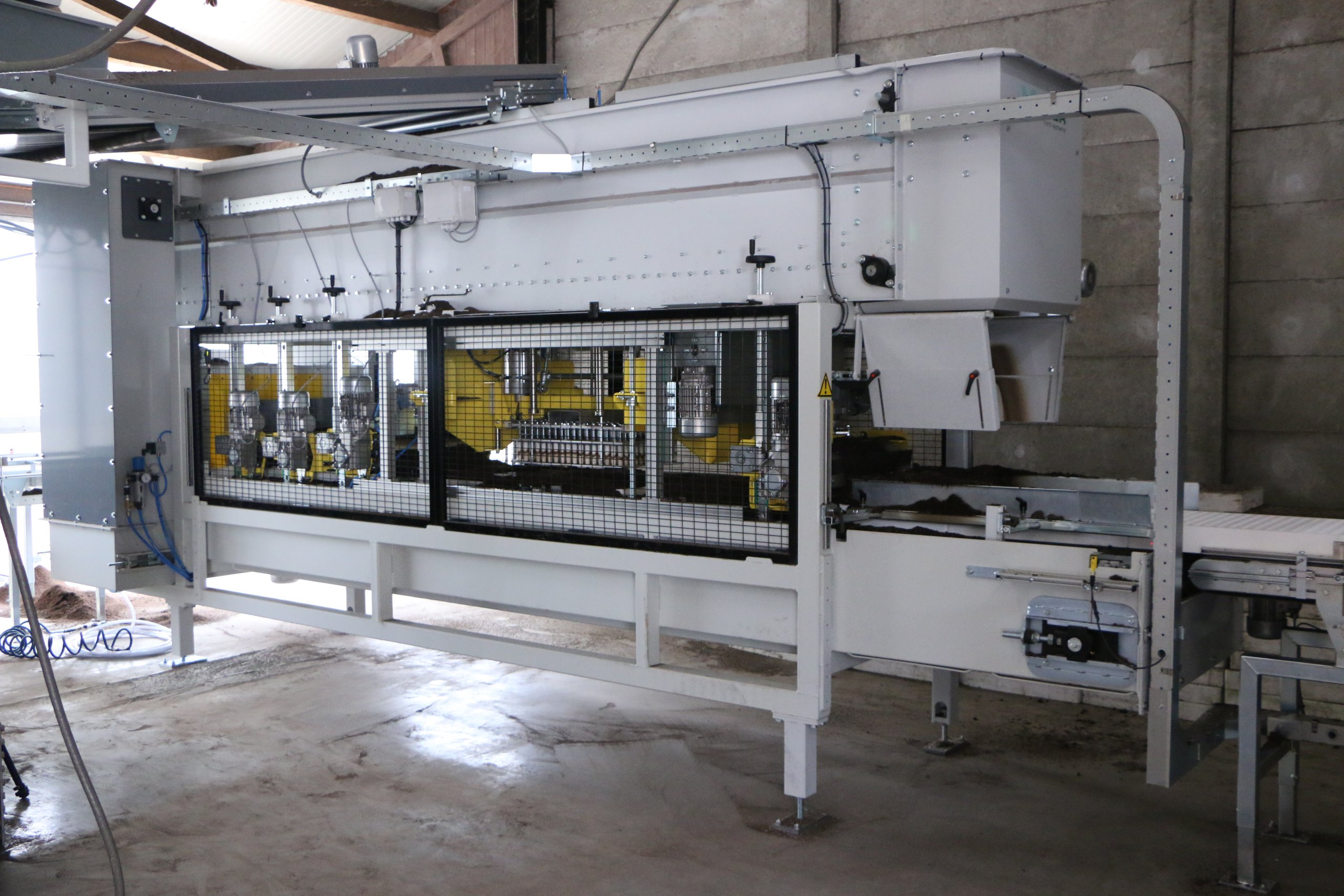

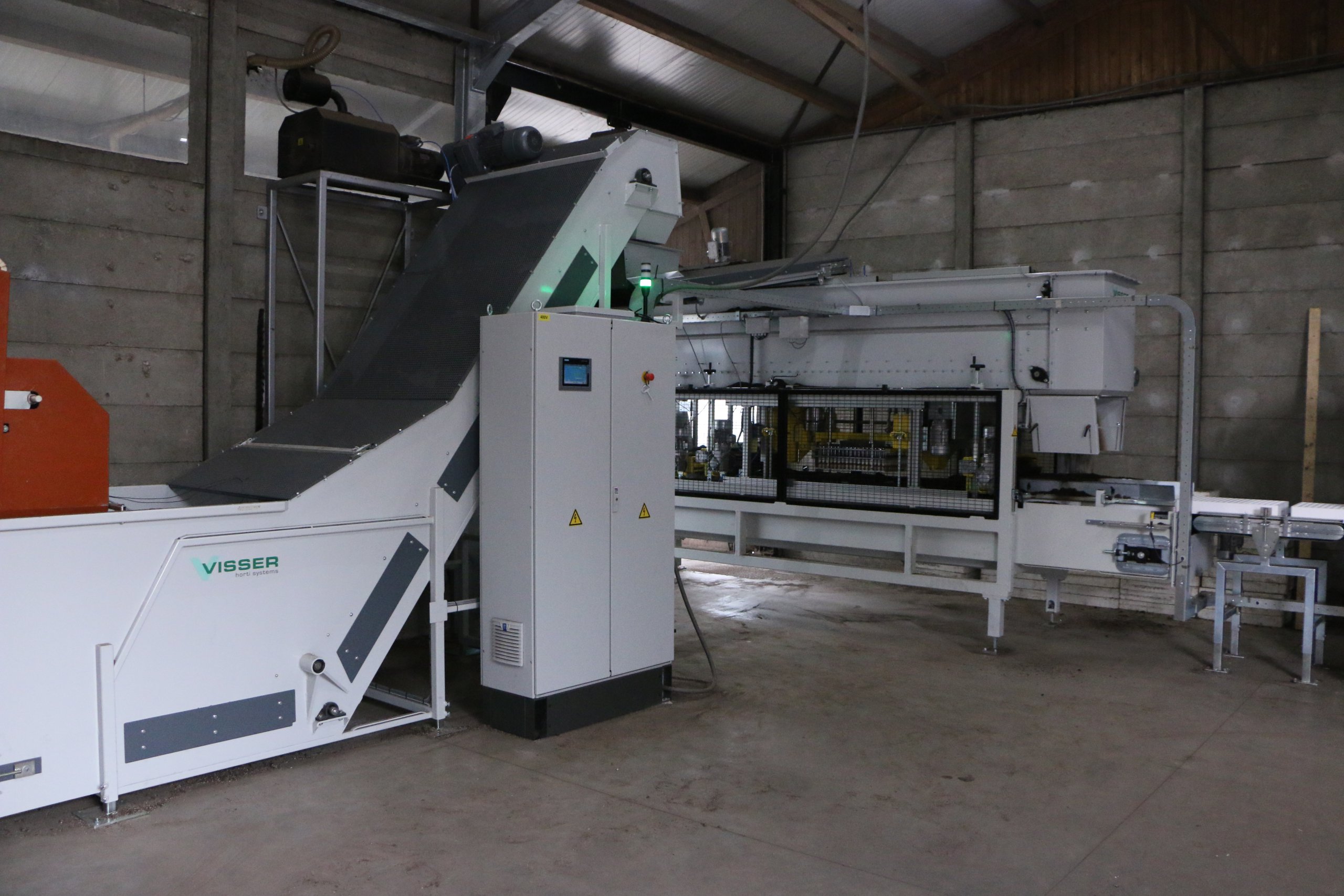

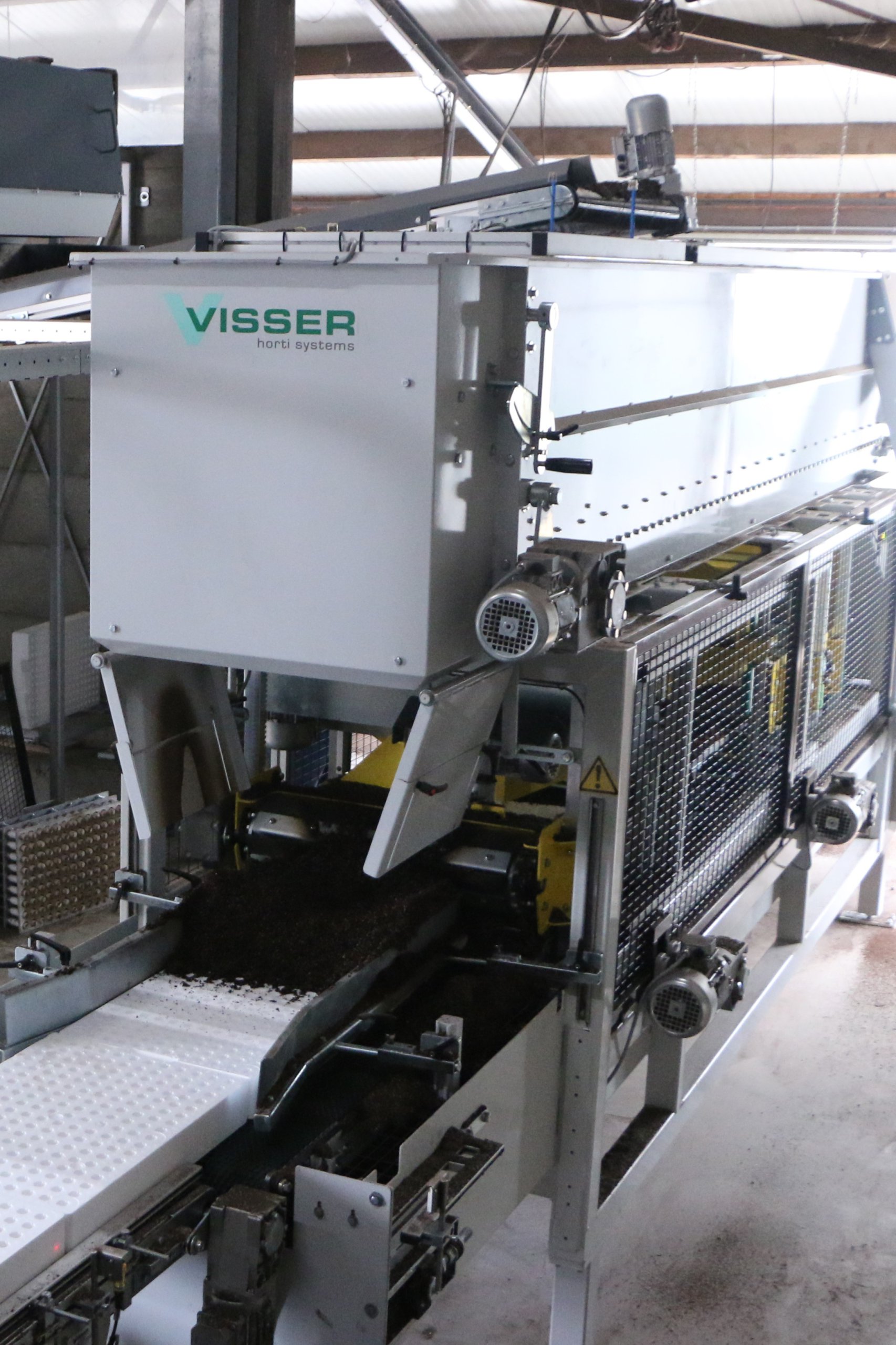

The Versa Filler features a 1000 liter capacity hopper over the transport conveyor to save space and make it perfectly suitable for overhead feed systems. A hopper extension is optional to increase the volume to 1850 liters. The soil elevator has a manually adjustable soil flow and has an improved design to produce less noise, less wear, and less tear.

Technical specifications

600

max tray length

1500

trays/hour

1000

soil hopper volume (L)

1850

extension soil hopper (l)

3900

Dimensions (mm)
